Xtreme Performance – 230mm Sprung hub Organic Twin Plate Clutch Kit Incl Flywheel & CSC 1000Nm

Descrizione

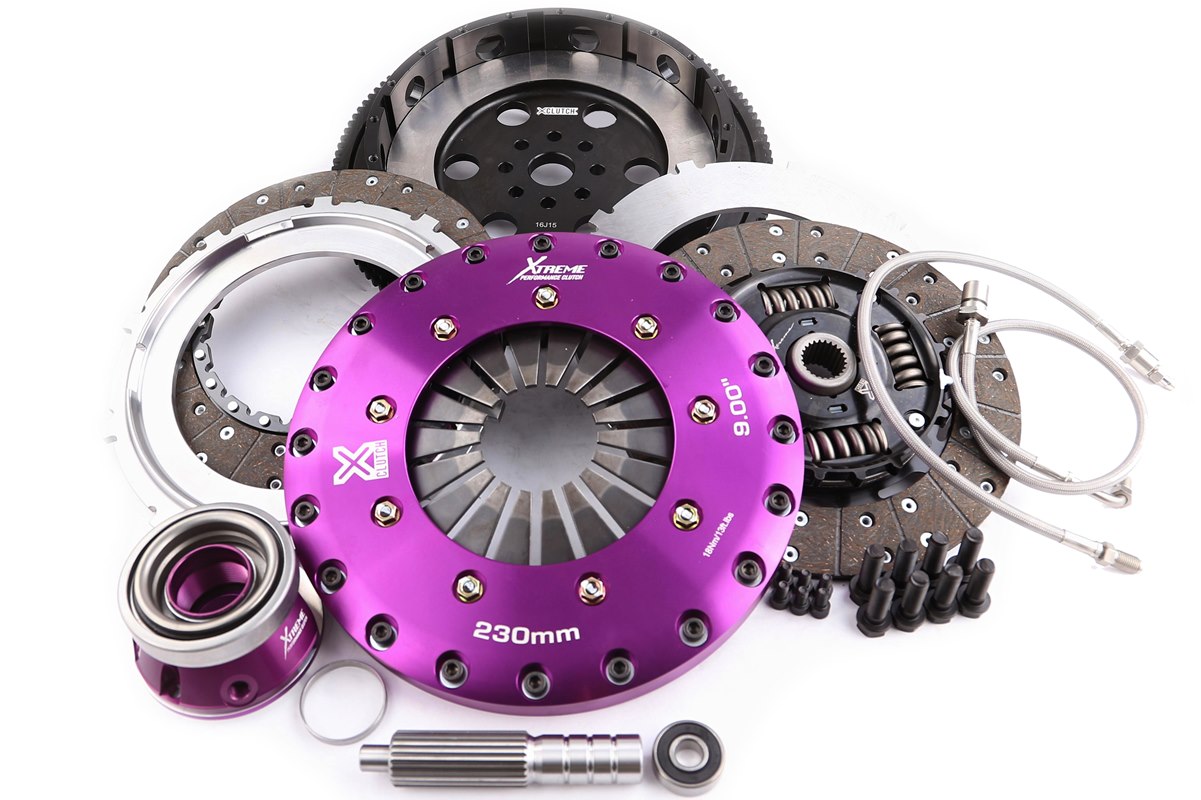

The Xtreme Clutch range of 230mm twin plate sprung organic clutch kits have been designed for high performance street vehicles that require reduced shock loading on the transmission in comparison to conventional rigid style discs. These kits are ideal for vehicles using factory style transmissions behind high torque applications and are recommended for street vehicles up to 1000 Nm of torque. The kits come complete with a performance pressure plate, sprung central hub, 2x organic friction discs, intermediate plate, 4140 chromoly flywheel, pressure plate bolts and alignment tool. Depending on application, these kits will also include a release bearing or concentric slave cylinder and flywheel bolts.

Clutch Disc Diameter (mm): 230
Clutch Disc Spline Count: 24
Clutch Disc Spline Diameter (mm): 25.6
Torque (Nm): 1000
Flywheel Step: 3,80
Design: Twin Plate
Stage: Multiplate – street use only
Tech Bulletins: TSB-292TSB-166
Clamp Load:
Recommended for: High horsepower street driven vehicles
Ring Gear Tooth count:
Additional infotmation: – Subaru/Impreza/2.0 Turbo GT AWD (GC8)/1998.06-2000.12/EJ205 1994 Petrol 160 kW 218 BHP (1998.06 – 2000.12) , Suits 6 Speed Gearbox
– Subaru/Impreza/2.0 Turbo GT AWD (GF8)/1998.06-2000.12/EJ205 1994 Petrol 160 kW 218 BHP (1998.06 – 2000.12) , Suits 6 Speed Gearbox
– Subaru/Impreza/2.0 Turbo AWD (GGA)/2000.12-2005.12/EJ205 1994 Petrol 160 kW 218 BHP (2000.12 – 2005.12) , Suits 6 Speed Gearbox
– Subaru/Impreza/2.0 WRX Turbo AWD (GDA) 6 speed/2000.12-2005.12/EJ205 1994 Petrol 160 kW 218 BHP (2000.12 – 2005.12) , Suits 6 Speed Gearbox
– Subaru/Impreza/2.0 WRX Turbo AWD (GGA)/2002.12-2006.09/EJ205 1994 Petrol 165 kW 225 BHP (2002.12 – 2006.09) , Suits 6 Speed Gearbox
– Subaru/Impreza/2.0 WRX AWD (GGA)/2001.09-2005.12/EJ205 1994 Petrol 169 kW 230 BHP (2001.09 – 2005.12) , Suits 6 Speed Gearbox
– Subaru/Impreza/2.0 AWD (GC8)/1998.09-2000.09/EJ205P 1994 Petrol 206 kW 280 BHP (1998.09 – 2000.09) , Suits 6 Speed Gearbox
– Subaru/Impreza/2.0 WRX STi AWD (GDB)/2001.11-2005.07/EJ207 1994 Petrol 195 kW 265 BHP (2001.11 – 2005.07) , Suits 6 Speed Gearbox
– Subaru/Impreza/2.0 AWD (GDB)/2005.10-2007.03/EJ207 1994 Petrol 206 kW 280 BHP (2005.10 – 2007.03) , Suits 6 Speed Gearbox
– Subaru/Impreza/2.0 WRX STi AWD/2004.02-2005.07/EJ207 1994 Petrol 235 kW 320 BHP (2004.02 – 2005.07) , Suits 6 Speed Gearbox
