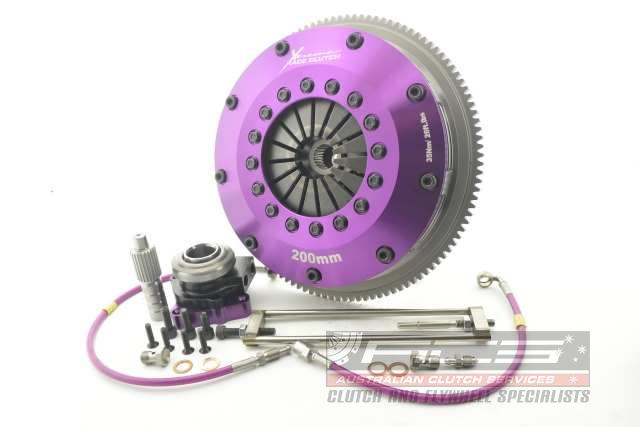

Name: Xtreme Performance - 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel &amp; CSC 1200Nm
Brand: EXTREME PERFORMANCE CLUTCH
SKU: KMI20682-2B
Price: 2158.79 EUR
Availability: BackOrder

Descrizione

li::marker { color: #CC0099; }

Xtreme Motorsport 200mm twin plate

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

Torque capacity 1200Nm

Kit contains everything you need for a successful installation + accessories

High torque sprung driven discs (common hub)

Push type billet alloy cover

4140 Chromoly pressure & intermediate plates

Hardened steel wear posts

Low inertia

Serviceable components

SFI certified design

.table { margin: 0 auto; border-collapse: collapse; font-size: 12px; width: 100%; } .table tr td { border: 1px solid silver; text-align: center; font-size: 12px; } .xtc { background-color: #f8f8f8; }

Clamping Force 1000kg

Torque Rating 1200Nm

Bearing Contact Diameter 44-52mm

Bearing Load (@ 48mm) 218kg

Release Travel Required 6mm

Assembly Mass (without flywheel) 7.4kg

Disc Set Static Mass 2.15kg

Friction Thickness New 7mm (0.275")

Friction Thickness Worn 6.48mm (0.255")

Clutch Disc Diameter (mm): 200
Clutch Disc Spline Count: 23
Clutch Disc Spline Diameter (mm): 26
Torque (Nm): 1200
Flywheel Step: +2.2mm
Design: Twin Plate
Stage: Multiplate – track use only
Tech Bulletins:
Clamp Load:
Recommended for: Motorsport
Ring Gear Tooth count:
Additional infotmation: – Mitsubishi/Lancer/EVO VIII – 260 (CT9A)/2004.03-2005.07/4G63 Turbo 1997 Petrol 195 kW 265 BHP (2004.03 – 2005.07) ,
– Mitsubishi/Lancer/EVO VII (CT9A)/2001.01-2003.01/4G63 Turbo 1997 Petrol 200 kW 272 BHP (2001.01 – 2003.01) ,
– Mitsubishi/Lancer/EVO IV (CN9A)/1996.08-1997.12/4G63 Turbo 1997 Petrol 206 kW 280 BHP (1996.08 – 1997.12) ,
– Mitsubishi/Lancer/EVO V (CP9A. CT9A)/1998.01-1998.12/4G63 Turbo 1997 Petrol 206 kW 280 BHP (1998.01 – 1998.12) ,
– Mitsubishi/Lancer/EVO VII (CT9A)/2001.01-2003.01/4G63 Turbo 1997 Petrol 206 kW 280 BHP (2001.01 – 2003.01) ,
– Mitsubishi/Lancer/EVO VIII (CT9A)/2003.04-2005.03/4G63 Turbo 1997 Petrol 206 kW 280 BHP (2003.04 – 2005.03) ,
– Mitsubishi/Lancer/EVO IX (CT9A)/2005.01-2007.09/4G63 Turbo 1997 Petrol 206 kW 280 BHP (2005.01 – 2007.09) ,
– Mitsubishi/Lancer/EVO IX (CT9A)/2005.08-2006.09/4G63 Turbo 1997 Petrol 213 kW 290 BHP (2005.08 – 2006.09) ,
– Mitsubishi/Lancer/EVO VIII – FQ-300 (CT9A)/2003.04-2004.04/4G63 Turbo 1997 Petrol 225 kW 305 BHP (2003.04 – 2004.04) ,
– Mitsubishi/Lancer/EVO VIII – FQ-300 (CT9A)/2003.04-2004.04/4G63 Turbo 1997 Petrol 227 kW 309 BHP (2003.04 – 2004.04) ,
– Mitsubishi/Lancer/EVO IX – FQ-300 (CT9A)/2005.06-2006.12/4G63 Turbo 1997 Petrol 227 kW 309 BHP (2005.06 – 2006.12) ,
– Mitsubishi/Lancer/EVO VIII – FQ-320 (CT9A)/2004.04-2006.08/4G63 Turbo 1997 Petrol 243 kW 331 BHP (2004.04 – 2006.08) ,
– Mitsubishi/Lancer/EVO VIII – FQ-330 (CT9A)/2003.10-2006.08/4G63 Turbo 1997 Petrol 246 kW 335 BHP (2003.10 – 2006.08) ,
– Mitsubishi/Lancer/EVO VIII – FQ-340 (CT9A)/2004.04-2005.03/4G63 Turbo 1997 Petrol 255 kW 347 BHP (2004.04 – 2005.03) ,
– Mitsubishi/Lancer/EVO IX – FQ-340 (CT9A)/2005.06-2007.12/4G63 Turbo 1997 Petrol 257 kW 350 BHP (2005.06 – 2007.12) ,
– Mitsubishi/Lancer/EVO IX – FQ-360 (CT9A)/2006.07-2007.12/4G63 Turbo 1997 Petrol 273 kW 371 BHP (2006.07 – 2007.12) ,
– Mitsubishi/Lancer/EVO VIII – FQ-400 (CT9A)/2004.10-2006.08/4G63 Turbo 1997 Petrol 302 kW 411 BHP (2004.10 – 2006.08) ,
– Mitsubishi/Lancer/EVO V – RS450 Ralliart (CP9A)/1998.01-1998.06/4G63 Turbo 1997 Petrol 336 kW 456 BHP (1998.01 – 1998.06) ,
