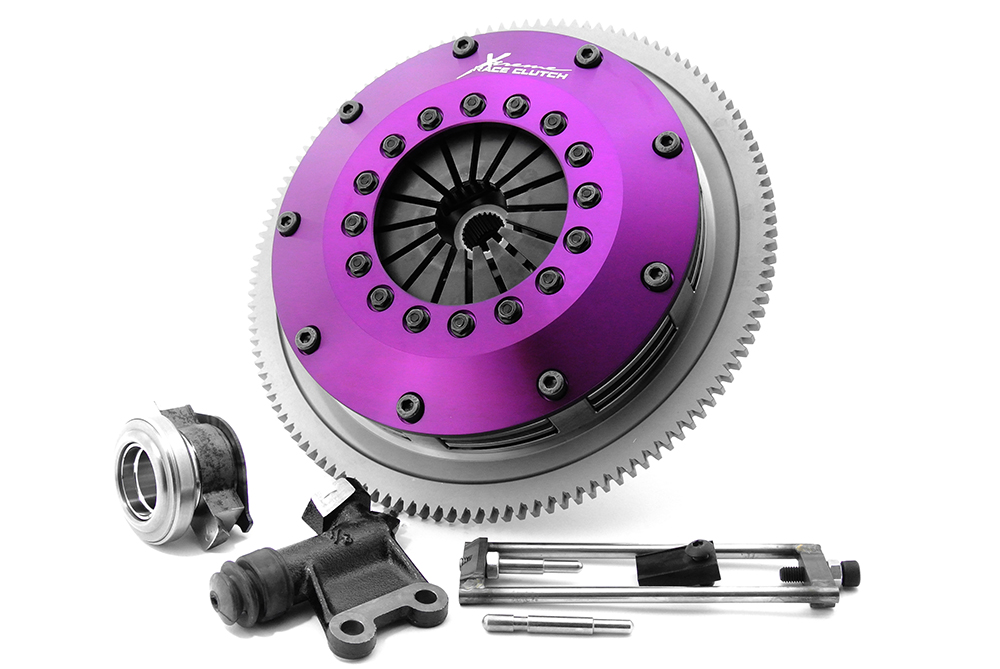

Name: Xtreme Performance - 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm
Brand: EXTREME PERFORMANCE CLUTCH
SKU: KSU20521-2B
Price: 1660.88 EUR
Availability: BackOrder

Descrizione

li::marker { color: #CC0099; }

Xtreme Motorsport 200mm twin plate

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

Torque capacity 1200Nm

Kit contains everything you need for a successful installation + accessories

High torque sprung driven discs (common hub)

Push type billet alloy cover

4140 Chromoly pressure & intermediate plates

Hardened steel wear posts

Low inertia

Serviceable components

SFI certified design

.table { margin: 0 auto; border-collapse: collapse; font-size: 12px; width: 100%; } .table tr td { border: 1px solid silver; text-align: center; font-size: 12px; } .xtc { background-color: #f8f8f8; }

Clamping Force 1000kg

Torque Rating 1200Nm

Bearing Contact Diameter 44-52mm

Bearing Load (@ 48mm) 218kg

Release Travel Required 6mm

Assembly Mass (without flywheel) 7.4kg

Disc Set Static Mass 2.15kg

Friction Thickness New 7mm (0.275")

Friction Thickness Worn 6.48mm (0.255")

Clutch Disc Diameter (mm): 200
Clutch Disc Spline Count: 24
Clutch Disc Spline Diameter (mm): 25.2
Torque (Nm): 1200
Flywheel Step: -15.0mm/.590″”
Design: Twin Plate
Stage: Multiplate – track use only
Tech Bulletins: TSB-200-2-X-1
Clamp Load: 1100Kg
Recommended for: Motorsport
Ring Gear Tooth count:
Additional infotmation: – Subaru/Impreza/2.0 Turbo GT AWD (GC8)/1998.06-2000.12/EJ205 1994 Petrol 160 kW 218 BHP (1998.06 – 2000.12) , Suits 6 Speed Gearbox
– Subaru/Impreza/2.0 Turbo GT AWD (GF8)/1998.06-2000.12/EJ205 1994 Petrol 160 kW 218 BHP (1998.06 – 2000.12) , Suits 6 Speed Gearbox
– Subaru/Impreza/2.0 Turbo AWD (GGA)/2000.12-2005.12/EJ205 1994 Petrol 160 kW 218 BHP (2000.12 – 2005.12) , Suits 6 Speed Gearbox
– Subaru/Impreza/2.0 WRX Turbo AWD (GDA) 6 speed/2000.12-2005.12/EJ205 1994 Petrol 160 kW 218 BHP (2000.12 – 2005.12) , Suits 6 Speed Gearbox
– Subaru/Impreza/2.0 WRX Turbo AWD (GGA)/2002.12-2006.09/EJ205 1994 Petrol 165 kW 225 BHP (2002.12 – 2006.09) , Suits 6 Speed Gearbox
– Subaru/Impreza/2.0 WRX AWD (GGA)/2001.09-2005.12/EJ205 1994 Petrol 169 kW 230 BHP (2001.09 – 2005.12) , Suits 6 Speed Gearbox
– Subaru/Impreza/2.0 AWD (GC8)/1998.09-2000.09/EJ205P 1994 Petrol 206 kW 280 BHP (1998.09 – 2000.09) , Suits 6 Speed Gearbox
– Subaru/Impreza/2.0 WRX STi AWD (GDB)/2001.11-2005.07/EJ207 1994 Petrol 195 kW 265 BHP (2001.11 – 2005.07) , Suits 6 Speed Gearbox
– Subaru/Impreza/2.0 WRX STi AWD (GGB)/2000.10-2002.10/EJ207 1994 Petrol 206 kW 280 BHP (2000.10 – 2002.10) , Suits 6 Speed Gearbox
– Subaru/Impreza/2.0 AWD (GDB)/2005.10-2007.03/EJ207 1994 Petrol 206 kW 280 BHP (2005.10 – 2007.03) , Suits 6 Speed Gearbox
– Subaru/Impreza/2.0 WRX STi AWD/2004.02-2005.07/EJ207 1994 Petrol 235 kW 320 BHP (2004.02 – 2005.07) , Suits 6 Speed Gearbox
– Subaru/Impreza/2.5 WRX STI AWD (GVF)/2010-2014/EJ255 2457 Petrol 221 kW 301 BHP (2010 – 2014) , Suits 6 Speed Gearbox
– Subaru/Impreza/2.5 i WRX STI AWD/2005.09-2007.12/EJ257 2457 Petrol 195 kW 265 BHP (2005.09 – 2007.12) , Suits 6 Speed Gearbox
– Subaru/Impreza/2.5 WRX STi AWD (GDF)/2005.09-2007.12/EJ257 2457 Petrol 206 kW 280 BHP (2005.09 – 2007.12) , Suits 6 Speed Gearbox
– Subaru/Impreza/2.5 AWD/2005.10-2007.03/EJ257 2457 Petrol 221 kW 300 BHP (2005.10 – 2007.03) , Suits 6 Speed Gearbox
– Subaru/Impreza/2.5 AWD (GDF)/2005.10-2007.03/EJ257 2457 Petrol 221 kW 300 BHP (2005.10 – 2007.03) , Suits 6 Speed Gearbox
– Subaru/Impreza/2.5 WRX STI AWD (GRF)/2008.01-2013.08/EJ257 2457 Petrol 221 kW 301 BHP (2008.01 – 2013.08) , Suits 6 Speed Gearbox
– Subaru/WRX/STi 2.5 AWD/2014.06-2021/EJ257 2457 Petrol 221 kW 301 BHP (2014.06 – 2021) , Suits 6 Speed Gearbox
– Subaru/Impreza/2.5 WRX STI 330S AWD/2009.05-2010.12/EJ257 2457 Petrol 243 kW 330 BHP (2009.05 – 2010.12) , Suits 6 Speed Gearbox
– Subaru/Impreza/2.5 STI CS400 AWD (GRF)/2010.04-2013.08/EJ257 2457 Petrol 294 kW 400 BHP (2010.04 – 2013.08) , Suits 6 Speed Gearbox
– Subaru/WRX/2.0 AWD (GK6. GK8)/2013.09-2018/FA20F, FA20E 1998 Petrol 197 kW 268 BHP (2013.09 – 2018) , Suits 6 Speed Gearbox
– Subaru/WRX/2.0 AWD (GK6. GK8)/2013.09-2021/FA20F, FA20E 1998 Petrol 197 kW 268 BHP (2013.09 – 2021) , Suits 6 Speed Gearbox
