The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

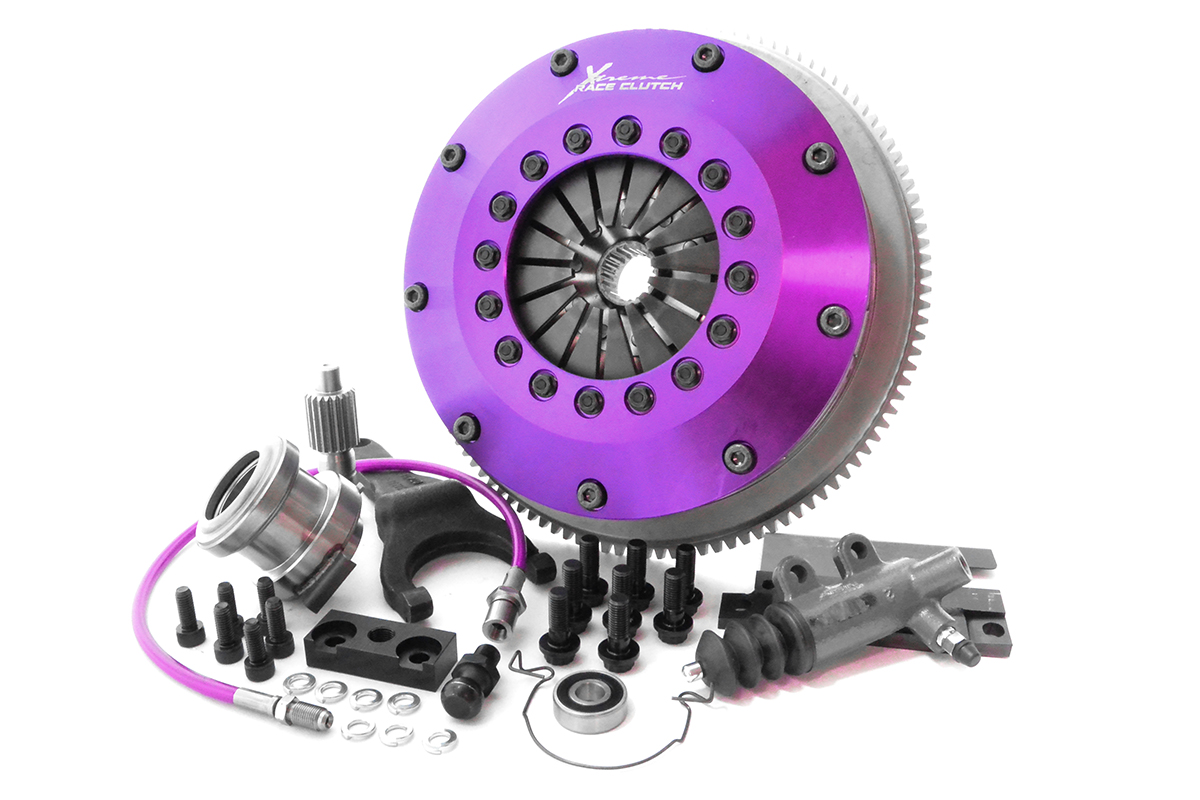

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).
Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- High torque sprung driven discs (common hub)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
.table { margin: 0 auto; border-collapse: collapse; font-size: 12px; width: 100%; } .table tr td { border: 1px solid silver; text-align: center; font-size: 12px; } .xtc { background-color: #f8f8f8; }
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7.4kg |
| Disc Set Static Mass | 2.15kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
Clutch Disc Diameter (mm): 200
Clutch Disc Spline Count: 21
Clutch Disc Spline Diameter (mm): 29.8
Torque (Nm): 1200
Flywheel Step: +2.2mm
Design: Twin Plate
Stage: Multiplate – track use only
Tech Bulletins: TSB-TY10TSB-200-2-X-1
Clamp Load:
Recommended for: Motorsport
Ring Gear Tooth count:
Additional infotmation: – Toyota/Chaser/2.5 (JZX90. JZX93)/1992.10-1996.08/1JZ-GE 2491 Petrol 132 kW 180 BHP (1992.10 – 1996.08) ,
– Toyota/Chaser/2.5 (JZX100_)/1996.10-2001.05/1JZ-GE 2491 Petrol 147 kW 200 BHP (1996.10 – 2001.05) ,
– Toyota/Supra/2.5 i Bi-Turbo (JZA70)/1990.08-1993.05/1JZ-GTE 2491 Petrol 206 kW 280 BHP (1990.08 – 1993.05) ,
– Toyota/Soarer/2.5 Turbo (JZZ30)/1990.09-2000.09/1JZ-GTE 2491 Petrol 206 kW 280 BHP (1990.09 – 2000.09) ,
– Toyota/Chaser/2.5 Turbo (JZX90)/1992.10-1996.08/1JZ-GTE 2491 Petrol 206 kW 280 BHP (1992.10 – 1996.08) ,
– Toyota/Mark II/Gen. VI |2.5 (JZX110)/1992.10-1996.09/1JZ-GTE 2491 Petrol 206 kW 280 BHP (1992.10 – 1996.09) ,
– Toyota/Chaser/2.5 (JZX100_)/1996.10-2001.05/1JZ-GTE 2491 Petrol 206 kW 280 BHP (1996.10 – 2001.05) ,
– Toyota/Mark II/Gen. VII | 2.5 VVTi (JZX100)/1996.10-2001.09/1JZ-GTE 2491 Petrol 206 kW 280 BHP (1996.10 – 2001.09) ,
