The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

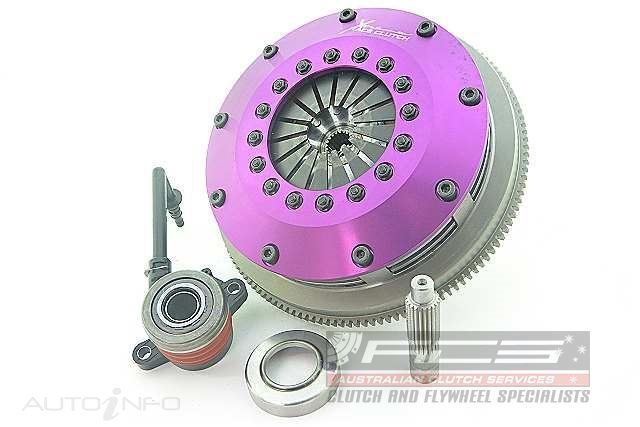

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).
Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- Rigid driven discs (individual hubs)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
.table { margin: 0 auto; border-collapse: collapse; font-size: 12px; width: 100%; } .table tr td { border: 1px solid silver; text-align: center; font-size: 12px; } .xtc { background-color: #f8f8f8; }
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7kg |
| Disc Set Static Mass | 1.75kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
Clutch Disc Diameter (mm): 200
Clutch Disc Spline Count: 21
Clutch Disc Spline Diameter (mm): 24
Torque (Nm): 1200
Flywheel Step: +2.2mm
Design: Twin Plate
Stage: Multiplate – track use only
Tech Bulletins:
Clamp Load:
Recommended for: Motorsport
Ring Gear Tooth count:
Additional infotmation: – Nissan/Juke/1.6 DIG-T/2010.06-2019.12/MR16DDT 1618 Petrol 140 kW 190 BHP (2010.06 – 2019.12) ,
– Nissan/Juke/1.6 DIG-T 4×4/2010.06-2019.12/MR16DDT 1618 Petrol 140 kW 190 BHP (2010.06 – 2019.12) ,
– Nissan/Tiida/1.6/2013.02-2023/MR16DDT 1618 Petrol 140 kW 190 BHP (2013.02 – 2023) ,
– Nissan/Juke/1.6/2013.03-2019.12/MR16DDT 1618 Petrol 140 kW 190 BHP (2013.03 – 2019.12) ,
– Nissan/Silvia/S110 | 1.8/2014.06-2022/MR20DD 1997 Petrol 106 kW 144 BHP (2014.06 – 2022) ,
– Nissan/X-trail/T32 | 2.0/2014.09-2022/MR20DD 1997 Petrol 106 kW 144 BHP (2014.09 – 2022) ,
