Name: Xtreme Performance - 200mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm
Brand: EXTREME PERFORMANCE CLUTCH
SKU: KHN20522-2E
Price: 1246.73 EUR
Availability: BackOrder

Descrizione

li::marker { color: #CC0099; }

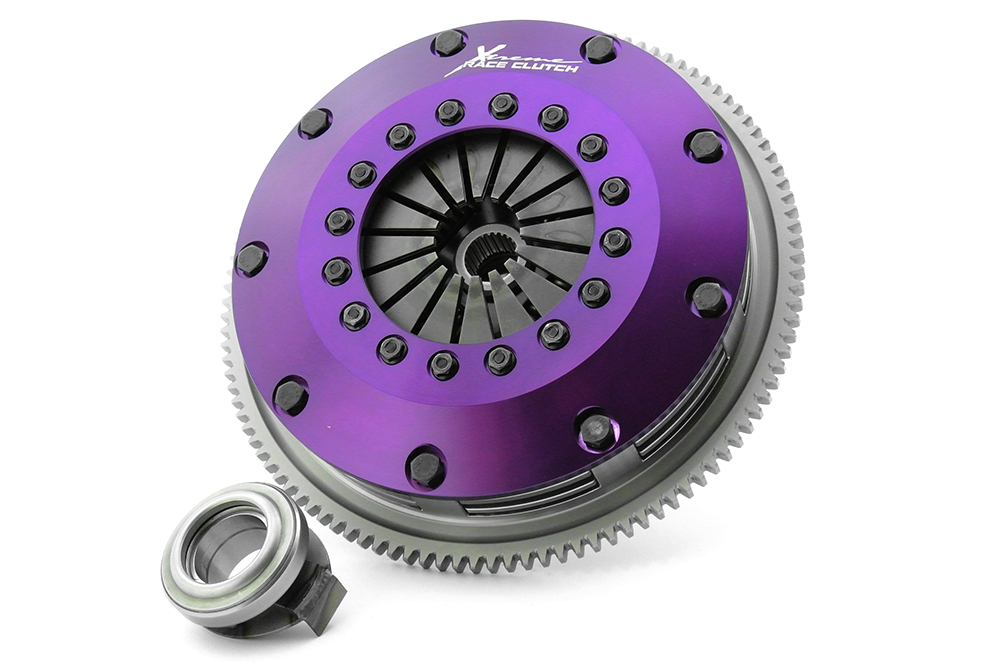

Xtreme Motorsport 200mm twin plate

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

Torque capacity 1200Nm

Kit contains everything you need for a successful installation + accessories

Rigid driven discs (individual hubs)

Push type billet alloy cover

4140 Chromoly pressure & intermediate plates

Hardened steel wear posts

Low inertia

Serviceable components

SFI certified design

.table { margin: 0 auto; border-collapse: collapse; font-size: 12px; width: 100%; } .table tr td { border: 1px solid silver; text-align: center; font-size: 12px; } .xtc { background-color: #f8f8f8; }

Clamping Force 1000kg

Torque Rating 1200Nm

Bearing Contact Diameter 44-52mm

Bearing Load (@ 48mm) 218kg

Release Travel Required 6mm

Assembly Mass (without flywheel) 7kg

Disc Set Static Mass 1.75kg

Friction Thickness New 7mm (0.275")

Friction Thickness Worn 6.48mm (0.255")

Clutch Disc Diameter (mm): 200
Clutch Disc Spline Count: 24
Clutch Disc Spline Diameter (mm): 26
Torque (Nm): 1200
Flywheel Step: +2.2mm
Design: Twin Plate
Stage: Multiplate – track use only
Tech Bulletins: TSB-200-2-X
Clamp Load: 1100Kg
Recommended for: Motorsport
Ring Gear Tooth count:
Additional infotmation: – Honda/Civic/Gen. V | 1.6 VTi (EG9)/1991.10-1995.11/B16A2 1595 Petrol 118 kW 160 BHP (1991.10 – 1995.11) ,
– Honda/Civic/Gen. V | 1.6 VTi 16V (EG6)/1991.10-1995.11/B16A2 1595 Petrol 118 kW 160 BHP (1991.10 – 1995.11) ,
– Honda/Civic/Gen. VI | 1.6 VTi (EK4)/1995.11-2001.02/B16A2 1595 Petrol 118 kW 160 BHP (1995.11 – 2001.02) ,
– Honda/Civic/Gen. VI | 1.6 i Vtec (EM1)/1999.04-2000.12/B16A2 1595 Petrol 118 kW 160 BHP (1999.04 – 2000.12) ,
– Honda/Integra/1.8 (DC2)/1993.07-2001.11/B18B1 1834 Petrol 101 kW 137 BHP (1993.07 – 2001.11) ,
– Honda/Integra/1.8 ESI (DB7)/1993.09-2001.08/B18B2 1834 Petrol 107 kW 145 BHP (1993.09 – 2001.08) ,
– Honda/Integra/1.8 (DC2)/1993.07-2001.11/B18B2 1834 Petrol 107 kW 146 BHP (1993.07 – 2001.11) ,
– Honda/Integra/1.8 VTiR (DC2)/1993.07-1999.11/B18C2 1797 Petrol 125 kW 170 BHP (1993.07 – 1999.11) ,
– Honda/Civic/Gen. VI | 1.8 16V (MB6)/1997.01-2001.02/B18C4 1797 Petrol 124 kW 169 BHP (1997.01 – 2001.02) ,
– Honda/Civic/Gen. VI | 1.8 16V (MC2)/1998.04-2001.02/B18C4 1797 Petrol 124 kW 169 BHP (1998.04 – 2001.02) ,
– Honda/Integra/1.8 Type-R (DC2)/1997.11-2001.10/B18C6 1797 Petrol 140 kW 190 BHP (1997.11 – 2001.10) ,
– Honda/CR-V/2.0 16V 4WD (RD1. RD3)/1995.10-2001.12/B20B 1973 Petrol 94 kW 128 BHP (1995.10 – 2001.12) ,
– Honda/CR-V/2.0 16V 4WD (RD1. RD3)/1999.01-2002.02/B20Z1 1973 Petrol 108 kW 147 BHP (1999.01 – 2002.02) ,
– Honda/CR-V/2.0 (RD1)/1999.04-2002.02/B20Z1 1973 Petrol 98 kW 133 BHP (1999.04 – 2002.02) ,
