The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

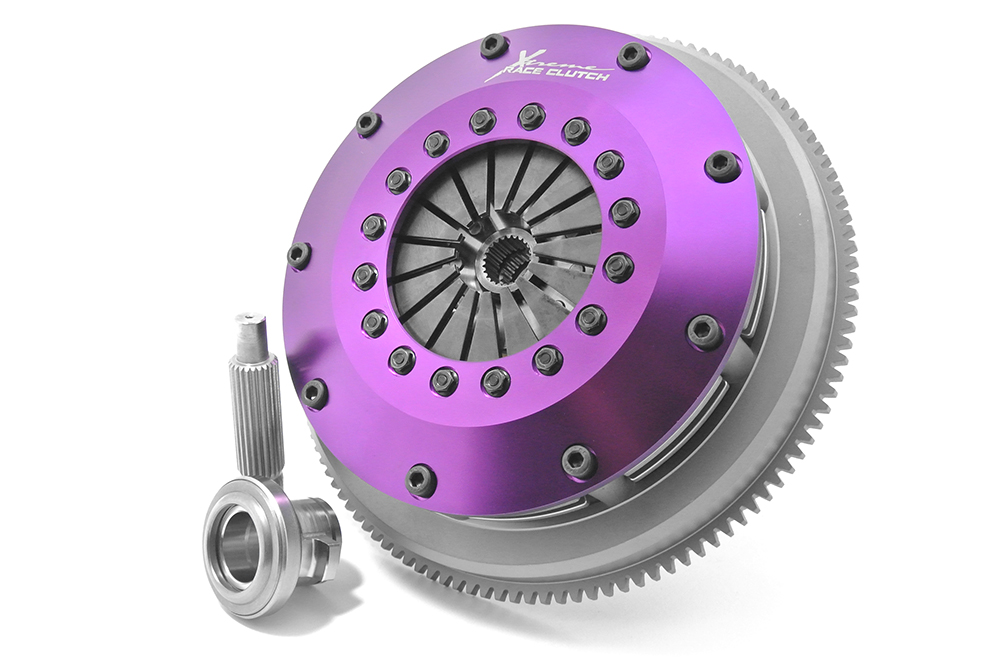

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).
Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- Rigid driven discs (individual hubs)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
.table { margin: 0 auto; border-collapse: collapse; font-size: 12px; width: 100%; } .table tr td { border: 1px solid silver; text-align: center; font-size: 12px; } .xtc { background-color: #f8f8f8; }
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7kg |
| Disc Set Static Mass | 1.75kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
Clutch Disc Diameter (mm): 200
Clutch Disc Spline Count: 24
Clutch Disc Spline Diameter (mm): 25.4
Torque (Nm): 1200
Flywheel Step: +2.2mm
Design: Twin Plate
Stage: Multiplate – track use only
Tech Bulletins: TSB-200-2-X
Clamp Load: 1100Kg
Recommended for: Motorsport
Ring Gear Tooth count:
Additional infotmation: – Nissan/Skyline/R32 | 2.0/1990.01-1993.01/RB20DET 1998 Petrol 153 kW 208 BHP (1990.01 – 1993.01) ,
– Nissan/Skyline/R32 | 2.0 Turbo/1989.03-1993.06/RB20DET 1998 Petrol 158 kW 215 BHP (1989.03 – 1993.06) ,
– Nissan/Skyline/R32 | 2.0 Turbo 4×4/1989.03-1993.06/RB20DET 1998 Petrol 158 kW 215 BHP (1989.03 – 1993.06) ,
– Nissan/Skyline/R32 | 2.0/1990.01-1993.01/RB20DET 1998 Petrol 160 kW 218 BHP (1990.01 – 1993.01) ,
– Nissan/Skyline/R32 | 2.0 AWD/1990.01-1993.01/RB20DET 1998 Petrol 160 kW 218 BHP (1990.01 – 1993.01) ,
– Nissan/Skyline/R32 | 2.5/1989.03-1993.06/RB25DE 2498 Petrol 132 kW 179 BHP (1989.03 – 1993.06) ,
– Nissan/Skyline/R33 | 2.5/1993.07-1998.05/RB25DE 2498 Petrol 140 kW 190 BHP (1993.07 – 1998.05) ,
– Nissan/Skyline/R33 | 2.5 4×4/1993.07-1998.05/RB25DE 2498 Petrol 140 kW 190 BHP (1993.07 – 1998.05) ,
– Nissan/Skyline/R34 | 2.5 4×4/1998.06-2000.07/RB25DEH 2498 Petrol 147 kW 200 BHP (1998.06 – 2000.07) ,
– Nissan/Skyline/R33 | 2.5/1994.01-2000.07/RB25DET 2498 Petrol 184 kW 250 BHP (1994.01 – 2000.07) ,
– Nissan/Skyline/R32 | 2.6 Twin Turbo 4×4/1989.04-1993.06/RB26DETT 2569 Petrol 206 kW 280 BHP (1989.04 – 1993.06) ,
– Holden/Calais/VL | 3.0 EFi/1986.03-1988.09/RB30E 2962 Petrol 114 kW 155 BHP (1986.03 – 1988.09) ,
– Holden/Commodore/VL | 3.0 EFi/1986.03-1988.09/RB30E 2962 Petrol 114 kW 155 BHP (1986.03 – 1988.09) ,
– Nissan/Skyline/R31 | 3.0/1986.07-1990.12/RB30E 2962 Petrol 117 kW 159 BHP (1986.07 – 1990.12) ,
– Holden/Calais/VL | 3.0 EFi Turbo/1986.01-1988.08/RB30ET 2962 Petrol 150 kW 204 BHP (1986.01 – 1988.08) ,
– Holden/Commodore/VL | 3.0 EFi Turbo/1986.01-1988.08/RB30ET 2962 Petrol 150 kW 204 BHP (1986.01 – 1988.08) ,
– Nissan/Skyline/R31 | 3.0/1985.08-1989.03/RB30S 2962 Petrol 105 kW 143 BHP (1985.08 – 1989.03) ,
