-2E

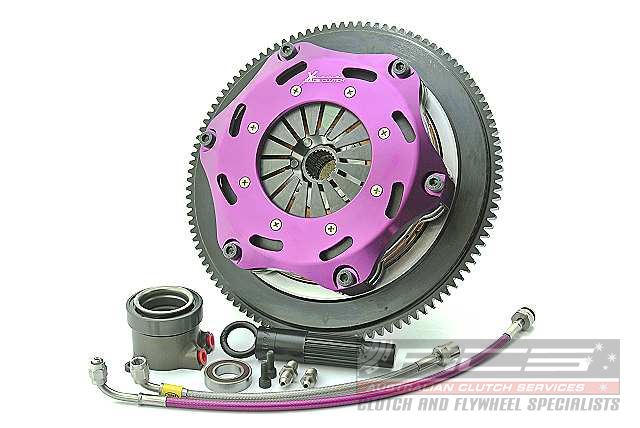

	The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.
	Ø184mm Light Diaphragm (2.6mm) Ø184mm Heavy Diaphragm (2.8mm) Clamping Force 950kg 1080kg Torque Rating 1060Nm 1210Nm Bearing Contact Diameter 44-52mm 44-52mm Bearing Load (@ 48mm) 210kg 260kg Release Travel Required 5mm 5mm Assembly Mass (without flywheel) 4.45kg 4.45kg Disc Set Static Mass 1.1kg Friction Thickness New 6.35mm (0.250") 6.35mm (0.250") Friction Thickness Worn 5.97mm (0.235") 5.97mm (0.235") Product Features: Push type billet alloy cover 4140 Chromoly pressure plate Hardened steel wear posts High and low ratio pressure plate options Low inertia Serviceable components SFI certified design

Clutch Disc Diameter (mm): 184
Clutch Disc Spline Count: 24
Clutch Disc Spline Diameter (mm): 26.2
Torque (Nm): 1220
Flywheel Step:
Design: Twin Plate
Stage: Multiplate – track use only
Tech Bulletins:
Clamp Load: 900Kg
Recommended for: Motorsport
Ring Gear Tooth count:
Additional infotmation: – Honda/S2000/2.0 (AP1)/1999.06-2009/F20C VTEC 1997 Petrol 177 kW 240 BHP (1999.06 – 2009) ,
– Honda/S2000/2.0 Vtec/1999.03-2003.10/F20C1 1997 Petrol 170 kW 231 BHP (1999.03 – 2003.10) ,
– Honda/S2000/2.0 Vtec (AP1)/2003.10-2009/F20C3 1997 Petrol 184 kW 250 BHP (2003.10 – 2009) ,
– Honda/S2000/2.2 Vtec (AP2)/2003.10-2009/F22C1 2156 Petrol 176 kW 239 BHP (2003.10 – 2009) ,
