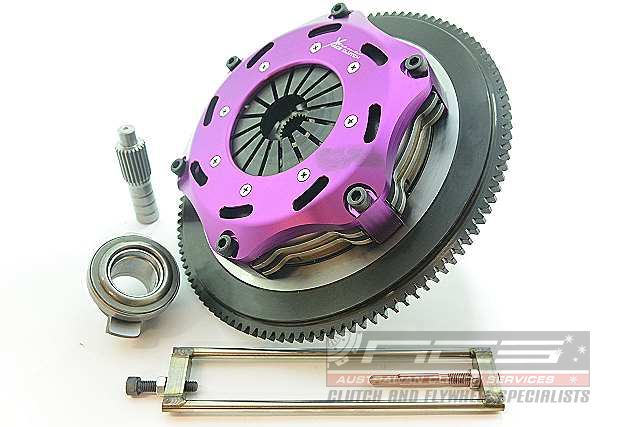

Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction.
The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.
- Push type billet alloy cover
- 4140 Chromoly pressure plate
- Hardened steel wear posts
- High and low ratio pressure plate options
- Low inertia
- Serviceable components
- SFI certified design
.table { margin: 0 auto; border-collapse: collapse; font-size: 12px; width: 50%; } .table tr td { border: 1px solid silver; text-align: center; font-size: 12px; } .xtc { background-color: #f8f8f8; }
|
Replacement Parts
|
Light Diaphragm Alloy Hat Assembly (2.6mm) | 185-10B-PP-L | Heavy Diaphragm Alloy Hat Assembly (2.8mm) | 185-10B-PP | Pressure Plate Casting | 185-10B-PPC | Intermediate Plate | 185-10B-IP | Pressure Plate Bolt | BOLT-8X1.125X50 | Pressure Plate Washer | WASHER-8MM-C |
| Ø184mm Light Diaphragm (2.6mm) | Ø184mm Heavy Diaphragm (2.8mm) | |
| Clamping Force | 950kg | 1080kg |
| Torque Rating | 1060Nm | 1210Nm |
| Bearing Contact Diameter | 44-52mm | |
| Bearing Load (@ 48mm) | 210kg | 260kg |
| Release Travel Required | 5mm | |
| Assembly Mass (without flywheel) | 4.45kg | |
| Disc Set Static Mass | 1.1kg | |
| Friction Thickness New | 6.35mm (0.250") | |
| Friction Thickness Worn | 5.97mm (0.235") | |
Clutch Disc Diameter (mm): 184
Clutch Disc Spline Count: 23
Clutch Disc Spline Diameter (mm): 26
Torque (Nm): 1220
Flywheel Step: +2.5mm
Design: Twin Plate
Stage: Multiplate – track use only
Tech Bulletins:
Clamp Load: 900Kg
Recommended for: Motorsport
Ring Gear Tooth count:
Additional infotmation: – Mitsubishi/Lancer/2.0 i Ralliart 4WD (CY4A)/2008.10-2015/4B11-T/C 1998 Petrol 177 kW 241 BHP (2008.10 – 2015) ,
– Mitsubishi/Lancer/2.0 Ralliart 4WD (CX4A)/2008.10-2015/4B11-T/C 1998 Petrol 177 kW 241 BHP (2008.10 – 2015) ,
– Mitsubishi/Lancer/EVO X (CZ4A)/2008.06-2015.12/4B11-T/C 1998 Petrol 217 kW 295 BHP (2008.06 – 2015.12) ,
– Mitsubishi/Lancer/EVO X (CZ4A)/2008.06-2015.03/4B11-T/C 1998 Petrol 221 kW 301 BHP (2008.06 – 2015.03) ,
– Mitsubishi/Lancer/EVO X (CZ4A)/2014.09-2015.12/4B11-T/C 1998 Petrol 226 kW 307 BHP (2014.09 – 2015.12) ,
– Mitsubishi/Lancer/EVO X – FQ400 (CZ4A)/2009.05-2010.12/4B11-T/C 1998 Petrol 301 kW 409 BHP (2009.05 – 2010.12) ,
– Mitsubishi/Lancer/EVO X – FQ440 (CZ4A)/2014.05-2014.06/4B11-T/C 1998 Petrol 328 kW 446 BHP (2014.05 – 2014.06) ,
