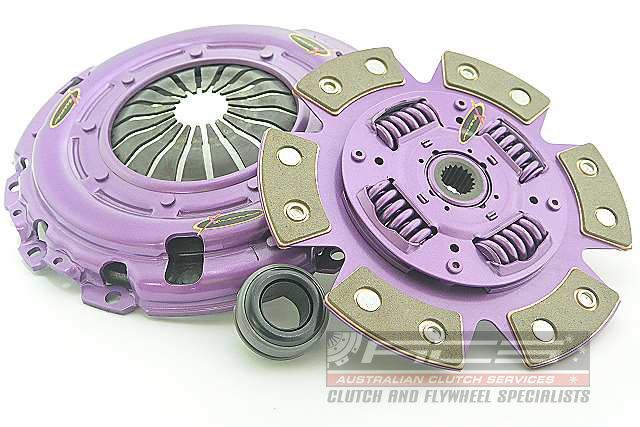

Clutch Kit – Xtreme Performance Heavy Duty Sprung Ceramic 480Nm 700kg

Descrizione

li::marker {color: #CC0099;}

Recommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 480Nm
• Clamp load 700kg Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle. Clutch Disc Diameter (mm): 230
Clutch Disc Spline Count: 18
Clutch Disc Spline Diameter (mm): 21
Torque (Nm): 470
Flywheel Step: -8.0mm
Design: Single Plate
Stage: Stage 2
Tech Bulletins:
Clamp Load: 700Kg
Recommended for: Track – Stage 2
Ring Gear Tooth count:
Additional infotmation: – Peugeot/407/1.8 16V/2005.08-2010.12/6FY (EW7A) 1749 Petrol 92 kW 125 BHP (2005.08 – 2010.12) ,
– Citroën/C5/1.8 16V/2005.09-2008.01/6FY (EW7A) 1749 Petrol 92 kW 125 BHP (2005.09 – 2008.01) ,
– Citroën/C4 Grand Picasso/1.8 i 16V/2006.10-2010.12/6FY (EW7A) 1749 Petrol 92 kW 125 BHP (2006.10 – 2010.12) ,
– Citroën/C5/1.8 16V (DC6FZB. DC6FZE)/2001.03-2004.08/6FZ (EW7J4) 1749 Petrol 85 kW 115 BHP (2001.03 – 2004.08) ,
– Peugeot/406/1.8 16V/2000.10-2004.05/6FZ (EW7J4) 1749 Petrol 85 kW 116 BHP (2000.10 – 2004.05) ,
– Peugeot/407/1.8/2004.05-2005.07/6FZ (EW7J4) 1749 Petrol 85 kW 116 BHP (2004.05 – 2005.07) ,
– Citroën/C5/1.8 16V (RE6FZB)/2004.09-2005.08/6FZ (EW7J4) 1749 Petrol 85 kW 116 BHP (2004.09 – 2005.08) ,
– Peugeot/307/1.4 HDi/2001.10-2005.06/8HX (DV4TD), 8HZ (DV4TD) 1398 Diesel 50 kW 68 BHP (2001.10 – 2005.06) ,
– Citroën/C3/1.4 16V HDi/2002.02-2008.06/8HY (DV4TED4) 1398 Diesel 66 kW 90 BHP (2002.02-2008.06) ,
– Peugeot/307/1.4 HDi/2002.03-2005.06/8HZ (DV4TD) 1398 Diesel 50 kW 68 BHP (2002.03 – 2005.06) ,
– Citroën/C5/2.0 16V (RCRFJB. RCRFJC)/2004.09-2008.08/RFJ (EW10A) 1997 Petrol 103 kW 140 BHP (2004.09 – 2008.08) ,
– Citroën/C4/2.0 16V/2004.11-2011.07/RFJ (EW10A) 1997 Petrol 103 kW 140 BHP (2004.11 – 2011.07) ,
– Peugeot/307/2.0 16V/2004.12-2009.04/RFJ (EW10A) 1997 Petrol 103 kW 140 BHP (2004.12 – 2009.04) ,
– Peugeot/407/2.0 16V/2005.08-2010.12/RFJ (EW10A) 1997 Petrol 103 kW 140 BHP (2005.08 – 2010.12) ,
– Peugeot/807/2.0 16V/2005.09-2009/RFJ (EW10A) 1997 Petrol 103 kW 140 BHP (2005.09 – 2009) ,
– Citroën/C8/2.0 16V/2005.09-2014/RFJ (EW10A) 1997 Petrol 103 kW 140 BHP (2005.09 – 2014) ,
– Citroën/C4/2.0 16V/2006.07-2011.07/RFJ (EW10A) 1997 Petrol 103 kW 140 BHP (2006.07 – 2011.07) ,
– Citroën/C4 Grand Picasso/2.0 i 16V/2006.10-2013.08/RFJ (EW10A) 1997 Petrol 103 kW 140 BHP (2006.10 – 2013.08) ,
– Citroën/C4 Picasso/2.0 i 16V/2007.09-2013.08/RFJ (EW10A) 1997 Petrol 103 kW 140 BHP (2007.09 – 2013.08) ,
– Peugeot/Expert/2.0 16V/2007.01-2016.03/RFJ (EW10A), RFH (EW10A) 1997 Petrol 103 kW 140 BHP (2007.01 – 2016.03) ,
– Peugeot/206/2.0 RC/2003.07-2007.12/RFK (EW10J4S) 1997 Petrol 130 kW 177 BHP (2003.07 – 2007.12) ,
– Peugeot/307/2.0 16V/2003.10-2009.04/RFK (EW10J4S) 1997 Petrol 130 kW 177 BHP (2003.10 – 2009.04) ,
– Citroën/C4/2.0 16V/2004.11-2008.07/RFK (EW10J4S) 1997 Petrol 130 kW 177 BHP (2004.11 – 2008.07) ,
– Peugeot/206/2.0 S16/1999.06-2007.12/RFN (EW10J4) 1997 Petrol 100 kW 136 BHP (1999.06 – 2007.12) ,
– Peugeot/607/2.0/2000.02-2005.08/RFN (EW10J4) 1997 Petrol 100 kW 136 BHP (2000.02 – 2005.08) ,
– Citroën/Evasion/2.0 16V/2000.05-2002.07/RFN (EW10J4) 1997 Petrol 100 kW 136 BHP (2000.05 – 2002.07) ,
– Peugeot/Expert/2.0/2000.07-2006.12/RFN (EW10J4) 1997 Petrol 100 kW 136 BHP (2000.07 – 2006.12) ,
– Peugeot/406/2.0 16V/2000.08-2004.06/RFN (EW10J4) 1997 Petrol 100 kW 136 BHP (2000.08 – 2004.06) ,
– Peugeot/307/2.0 16V/2000.08-2005.06/RFN (EW10J4) 1997 Petrol 100 kW 136 BHP (2000.08 – 2005.06) ,
– Peugeot/806/2.0 16V/2000.09-2002.08/RFN (EW10J4) 1997 Petrol 100 kW 136 BHP (2000.09 – 2002.08) ,
– Citroën/C5/2.0 16V (DCRFNC. DCRFNF)/2001.03-2004.08/RFN (EW10J4) 1997 Petrol 100 kW 136 BHP (2001.03 – 2004.08) ,
– Citroën/C5/2.0 16V (DERFNF. DERFNC. RERFNC)/2001.06-2004.08/RFN (EW10J4) 1997 Petrol 100 kW 136 BHP (2001.06 – 2004.08) ,
– Peugeot/807/2.0/2002.06-/RFN (EW10J4) 1997 Petrol 100 kW 136 BHP (2002.06 -) ,
– Citroën/C8/2.0/2002.07-2014/RFN (EW10J4) 1997 Petrol 100 kW 136 BHP (2002.07 – 2014) ,
– Peugeot/Expert/2.0/2002.09-2006.12/RFN (EW10J4) 1997 Petrol 100 kW 136 BHP (2002.09 – 2006.12) ,
– Peugeot/407/2.0/2004.05-2005.07/RFN (EW10J4) 1997 Petrol 100 kW 136 BHP (2004.05 – 2005.07) ,
– Citroën/C4/2.0 16V/2004.11-2007.07/RFN (EW10J4) 1997 Petrol 100 kW 136 BHP (2004.11 – 2007.07) ,
– Peugeot/307/2.0/2008.08-2011.12/RFN (EW10J4), RFJ (EW10A) 1997 Petrol 105 kW 143 BHP (2008.08 – 2011.12) ,
– Peugeot/406/2.0 16V/1999.01-2000.08/RFR (EW10J4) 1997 Petrol 99 kW 135 BHP (1999.01 – 2000.08) ,
– Peugeot/206/2.0 S16/1999.04-2000.10/RFR (EW10J4) 1997 Petrol 99 kW 135 BHP (1999.04 – 2000.10) ,
– Peugeot/406/2.0 16V/2000.10-2004.12/RFV (XU10J4R), RFN (EW10J4) 1997 Petrol 100 kW 136 BHP (2000.10 – 2004.12) ,
– Peugeot/406/2.0 HDI 90/1999.02-2004.05/RHY (DW10TD) 1997 Diesel 66 kW 90 BHP (1999.02 – 2004.05) ,
– Peugeot/206/2.0 HDI 90/1999.12-2009.09/RHY (DW10TD) 1997 Diesel 66 kW 90 BHP (1999.12 – 2009.09) ,
– Peugeot/307/2.0 HDi 90/2000.08-2007.03/RHY (DW10TD) 1997 Diesel 66 kW 90 BHP (2000.08 – 2007.03) ,
– Citroën/C5/2.0 HDi (DCRHYB)/2001.03-2004.08/RHY (DW10TD) 1997 Diesel 66 kW 90 BHP (2001.03 – 2004.08) ,
– Citroën/C5/2.0 16V HPi (DCRLZB)/2001.03-2004.08/RLZ (EW10D) 1997 Petrol 103 kW 140 BHP (2001.03 – 2004.08) ,
– Peugeot/406/2.0 16V HPi/2001.05-2004.05/RLZ (EW10D) 1997 Petrol 103 kW 140 BHP (2001.05 – 2004.05) ,
– Citroën/C5/2.0 16V HPi (DERLZB)/2001.06-2004.08/RLZ (EW10D) 1997 Petrol 103 kW 140 BHP (2001.06 – 2004.08) ,
