Recommended for: Motorsport Applications

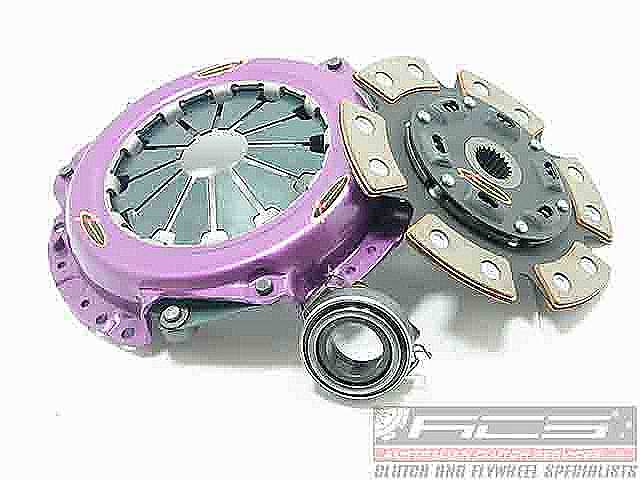

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.
- Torque capacity 390Nm
- Clamp load 620kg 30% Increased over standard
- Sprung Ceramic Friction Disc
- Heavy Duty Pressure Plate
- Kit contains everything you need for a successful installation + accessories
The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.
Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle. Clutch Disc Diameter (mm): 215
Clutch Disc Spline Count: 21
Clutch Disc Spline Diameter (mm): 23.8
Torque (Nm): 390
Flywheel Step: +.5mm/.020″”
Design: Single Plate
Stage: Stage 2
Tech Bulletins:
Clamp Load: 620kg (30% inc )
Recommended for: Track – Stage 2
Ring Gear Tooth count:
Additional infotmation: – Toyota/Starlet/1.5 D (NP70L)/1986.12-1989.12/1N 1453 Diesel 40 kW 54 BHP (1986.12 – 1989.12) ,
– Toyota/Corolla/1.3 i (EE90)/1987.08-1992.04/2E, 2E-E 1296 Petrol 55 kW 75 BHP (1987.08 – 1992.04) ,
– Toyota/MR2/Gen. I | 1.6 16V (AW11)/1984.11-1990.06/4A-GEL 1587 Petrol 91 kW 124 BHP (1984.11 – 1990.06) ,
– Toyota/MR2/Gen. I | 1.6 16V (AW11)/1984.06-1989.11/4A-GEL 1587 Petrol 96 kW 131 BHP (1984.06 – 1989.11) ,
– Toyota/MR2/Gen. I | 1.6 (AW11)/1984.11-1989.12/4A-GELC 1587 Petrol 80 kW 109 BHP (1984.11 – 1989.12) ,
– Toyota/MR2/Gen. I | 1.6 16V (AW11)/1984.11-1990.06/4A-GELC 1587 Petrol 85 kW 116 BHP (1984.11 – 1990.06) ,
– Toyota/Corolla/1.6 (AE82)/1983.06-1987.08/4A-L 1587 Petrol 62 kW 84 BHP (1983.06 – 1987.08) ,
– Toyota/Corolla/1.6 (AE82)/1985.08-1987.08/4A-LC 1587 Petrol 54 kW 73 BHP (1985.08 – 1987.08) ,
– Toyota/Carina/1.6 (AT151_)/1983.10-1987.11/4A-LC 1587 Petrol 55 kW 75 BHP (1983.10 – 1987.11) ,
