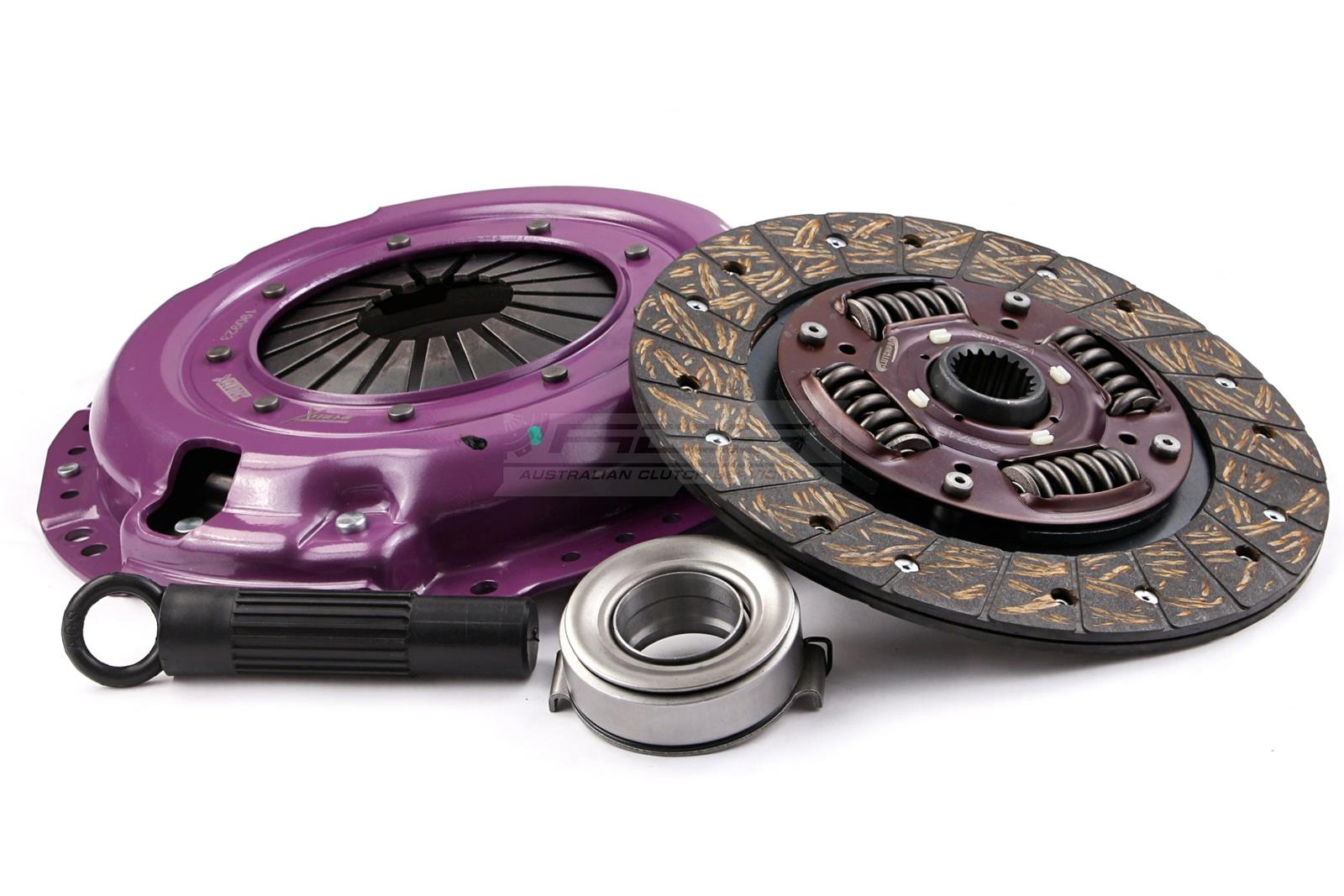

Clutch Kit – Xtreme Performance Heavy Duty Organic 280Nm 700kg (45% inc.)

Descrizione

li::marker {color: #CC0099;}

Recommended for: Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

• Torque capacity 280Nm



• Clamp load 700kg 45% Increased over standard
• Organic Friction Discs
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle. Clutch Disc Diameter (mm): 225
Clutch Disc Spline Count: 20
Clutch Disc Spline Diameter (mm): 26.9
Torque (Nm): 280
Flywheel Step: +.5mm/.020″”
Design: Single Plate
Stage: Stage 1
Tech Bulletins:
Clamp Load: 700Kg (45% inc.)
Recommended for: Street Performance & Towing – Stage 1
Ring Gear Tooth count:
Additional infotmation: – Toyota/Camry/1.8 Turbo-D (CV10_)/1982.10-1986.10/1C-TL, 1C-TLC 1839 Diesel 54 kW 73 BHP (1982.10 – 1986.10) ,
– Toyota/Camry/1.8 (SV20_)/1986.11-1989.08/1S 1832 Petrol 66 kW 90 BHP (1986.11 – 1989.08) ,
– Toyota/Corona/1.8 (ST160)/1984.09-1987.10/1S-EL 1832 Petrol 74 kW 101 BHP (1984.09 – 1987.10) ,
– Toyota/Camry/1.8 (SV20)/1986.08-1988.08/1S-I 1832 Petrol 88 kW 120 BHP (1986.08 – 1988.08) ,
– Toyota/Camry/2.0 Turbo-D (CV20_)/1986.11-1991.05/2C-T 1974 Diesel 62 kW 84 BHP (1986.11 – 1991.05) ,
– Toyota/Camry/2.0 Turbo-D (CV20_)/1986.10-1991.05/2C-T 1974 Diesel 63 kW 86 BHP (1986.10 – 1991.05) ,
– Toyota/Camry/2.0 (SV11)/1982.10-1986.10/2S-EL 1995 Petrol 77 kW 105 BHP (1982.10 – 1986.10) ,
– Toyota/Camry/2.0 (SV11_)/1983.01-1986.10/2S-EL 1995 Petrol 78 kW 106 BHP (1983.01 – 1986.10) ,
– Toyota/Camry/2.0 (SV11_)/1983.02-1986.10/2S-EL 1995 Petrol 79 kW 107 BHP (1983.02 – 1986.10) ,
– Toyota/Camry/2.0 (SV11_)/1983.02-1986.12/2S-ELC, 2S-E 1995 Petrol 73 kW 99 BHP (1983.02 – 1986.12) ,
– Holden/H Series/JK | 2.0/1989.08-1991.07/3S-FC 1998 Petrol 82 kW 110 BHP (1989.08 – 1991.07) ,
– Toyota/Camry/2.0 (SV22. SV21_)/1989.09-1991.06/3S-FC 1998 Petrol 82 kW 112 BHP (1989.09 – 1991.06) ,
– Holden/H Series/JK | 2.0i/1989.08-1991.08/3S-FE 1998 Petrol 88 kW 118 BHP (1989.08 – 1991.08) ,
– Toyota/Celica/2.0 (ST162)/1987.01-1989.08/3S-FE 1998 Petrol 88 kW 120 BHP (1987.01 – 1989.08) ,
– Holden/H Series/JL | 2.0i/1991.08-1993.02/3S-FE 1998 Petrol 88 kW 120 BHP (1991.08 – 1993.02) ,
– Toyota/Camry/2.0 (SV21_)/1986.11-1993.02/3S-FE 1998 Petrol 89 kW 121 BHP (1986.11 – 1993.02) ,
– Toyota/Corona/2.0 (ST171)/1987.12-1992.01/3S-FE 1998 Petrol 89 kW 121 BHP (1987.12 – 1992.01) ,
– Toyota/Carina/2.0 GLI (ST171)/1987.12-1992.03/3S-FE 1998 Petrol 89 kW 121 BHP (1987.12 – 1992.03) ,
– Toyota/Camry/2.0 (SV21_)/1986.11-1991.05/3S-FE 1998 Petrol 94 kW 128 BHP (1986.11 – 1991.05) ,
– Toyota/Carina/2.0 GLi (ST170)/1987.12-1992.03/3S-FE 1998 Petrol 94 kW 128 BHP (1987.12 – 1992.03) ,
– Toyota/Celica/2.0 (ST182. ST183)/1989.10-1994.01/3S-GE 1998 Petrol 115 kW 156 BHP (1989.10 – 1994.01) ,
– Toyota/MR2/Gen. II | 2.0 16V (SW20_)/1989.12-1999.09/3S-GE 1998 Petrol 115 kW 156 BHP (1989.12 – 1999.09) ,
– Toyota/Celica/2.0 (ST182_)/1989.09-1993.10/3S-GE 1998 Petrol 118 kW 160 BHP (1989.09 – 1993.10) ,
– Toyota/Carina ED/2.0 (ST182. ST183)/1989.09-1993.09/3S-GE 1998 Petrol 121 kW 165 BHP (1989.09 – 1993.09) ,
– Toyota/MR2/Gen. II | 2.0 16V (SW20_)/1989.12-2000.05/3S-GE 1998 Petrol 125 kW 170 BHP (1989.12 – 2000.05) ,
– Toyota/MR2/Gen. II | 2.0 16V (SW20_)/1989.12-1999.07/3S-GE 1998 Petrol 129 kW 175 BHP (1989.12 – 1999.07) ,
– Toyota/Celica/2.0 GT (ST162)/1985.08-1989.08/3S-GEL 1998 Petrol 110 kW 150 BHP (1985.08 – 1989.08) ,
– Toyota/Celica/2.0 (ST162)/1986.01-1989.08/3S-GEL, 3S-GELC 1998 Petrol 103 kW 140 BHP (1986.01 – 1989.08) ,
– Toyota/Corona/2.0 GTi (ST202)/1986.08-1987.10/3S-GELC 1998 Petrol 103 kW 140 BHP (1986.08 – 1987.10) ,
– Toyota/Corona/1.8 (ST170)/1987.12-1989.11/4S-FI 1838 Petrol 77 kW 105 BHP (1987.12 – 1989.11) ,
– Toyota/Celica/2.2 (ST184)/1989.10-1994.12/5S-FE 2164 Petrol 100 kW 136 BHP (1989.10 – 1994.12) ,
