Recommended for: Motorsport Applications

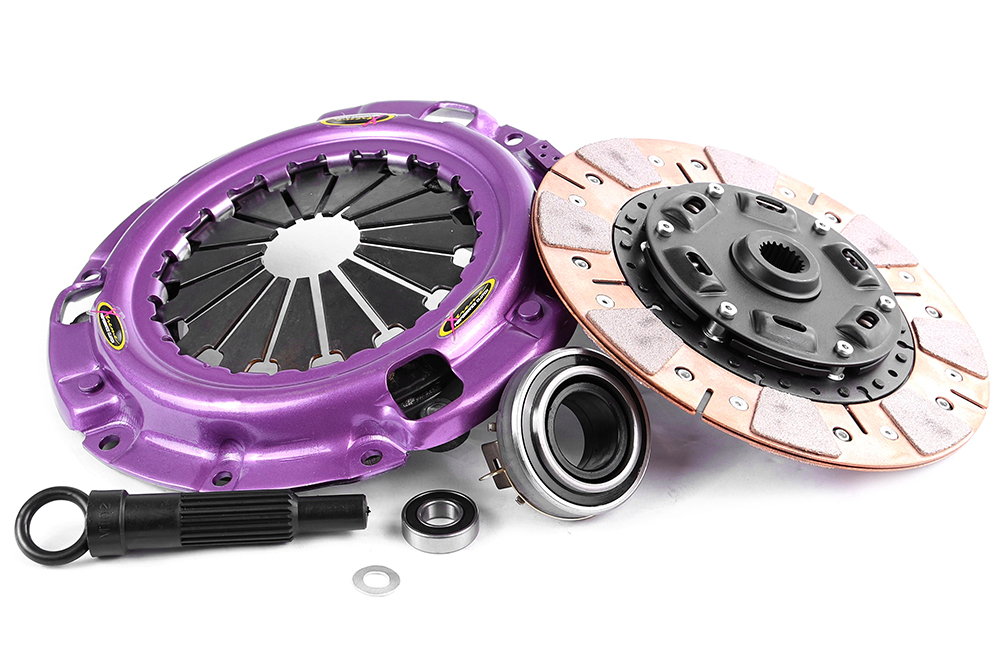

These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.
- Torque capacity 630Nm
- Clamp load 900Kg 20% Increased over standard
- Cushioned Ceramic Friction Disc
- Heavy Duty Pressure Plate
- Kit contains everything you need for a successful installation + accessories
The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.
Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle. Clutch Disc Diameter (mm): 225
Clutch Disc Spline Count: 20
Clutch Disc Spline Diameter (mm): 22.4
Torque (Nm): 630
Flywheel Step: -15.5mm/.610″”
Design: Single Plate
Stage: Stage 2
Tech Bulletins:
Clamp Load: 900Kg (20% inc.)
Recommended for: Track – Stage 2
Ring Gear Tooth count:
Additional infotmation: – Mitsubishi/Galant/Gen. VII | 2.0 GLSTD (E57A)/1992.11-1996.08/4D68 T 1998 Diesel 66 kW 90 BHP (1992.11 – 1996.08) ,
– Mitsubishi/Lancer/EVO I (CD9A)/1992.10-1993.12/4G63 Turbo 1997 Petrol 184 kW 250 BHP (1992.10 – 1993.12) ,
– Mitsubishi/Lancer/EVO II (CE9A)/1994.01-1995.07/4G63 Turbo 1997 Petrol 192 kW 261 BHP (1994.01 – 1995.07) ,
– Mitsubishi/Lancer/EVO III (CE9A)/1995.08-1996.07/4G63 Turbo 1997 Petrol 198 kW 269 BHP (1995.08 – 1996.07) ,
– Mitsubishi/Galant/Gen. VI | 2.0 GTI 16V Cat 4WD (E38A. E39A. E33A)/1990.10-1993.03/4G63-T (DOHC 16V) 1997 Petrol 148 kW 201 BHP (1990.10 – 1993.03) ,
– Mitsubishi/Lancer/1.8 EVO AWD/1992.11-1994.08/4G93 (DOHC 16V) 1834 Petrol 189 kW 257 BHP (1992.11 – 1994.08) ,
– Mitsubishi/Lancer/1.8 i Turbo AWD (CD5A)/1992.11-1996.07/4G93T 1834 Petrol 141 kW 192 BHP (1992.11 – 1996.07) ,
– Mitsubishi/Galant/Gen. VII | 2.0 V6-24 (E64A. E54A)/1992.11-1996.08/6A12 1999 Petrol 110 kW 150 BHP (1992.11 – 1996.08) ,
– Mitsubishi/GTO/3.0 AWD/1989.06-1996.04/6G72 (DOHC 24V) 2972 Petrol 165 kW 224 BHP (1989.06 – 1996.04) ,
