ACT CLUTCH – T3R-M03 – Mod-Twin 225 XX Rigid Race

Descrizione

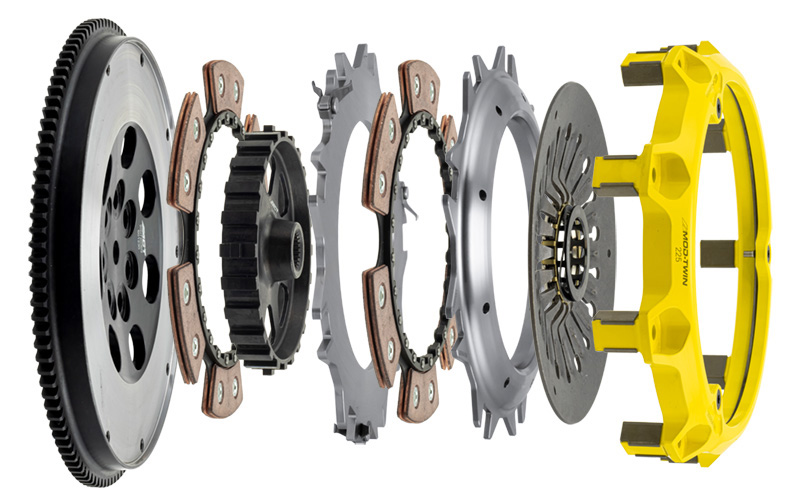

T3R-M03 Mod-Twin 225 XX Rigid Race Kit tackles aggressive launches and rapid shifting of high powered AWD�s by combining twice the ceramic friction surfaces with a no-nonsense solid Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process providing a consistent pedal feel requiring moderate effort. Puck-style Friction Plates with high quality ceramic friction materials deliver high friction coefficient, superior heat capacity, and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive chrome-moly hub which is heat treated for strength and durability extending input shaft life with one continuous spline. The lightweight, rigid design allows for quicker shifts and trouble-free service. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, rigid Mono-Drive hub, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately. disc_diameter_millimeters 225 flywheel_tooth_count pressure_plate_type sfi 1.2 spline_count 23 spline_size_inches torque_capacity_ft_lbs 1340 torque_capacity_nm 1816 torque_capacity_over_oe 275%
