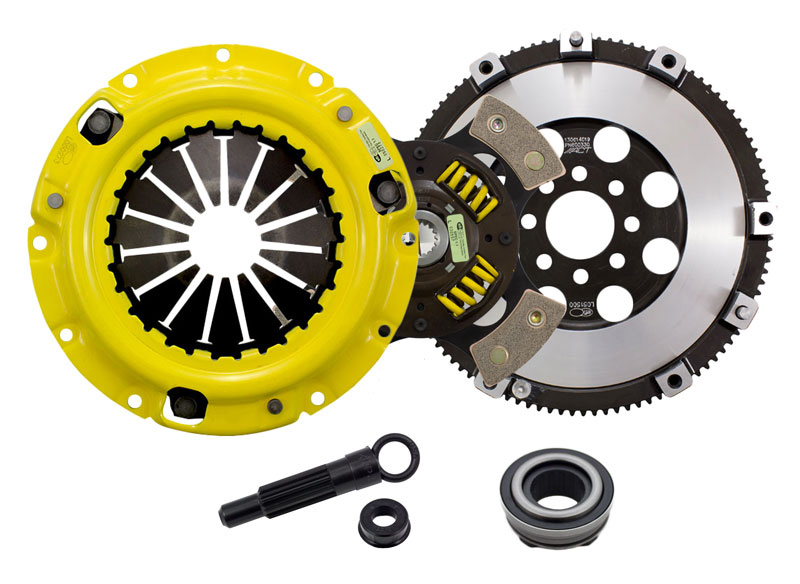

ACT CLUTCH – DN2-HDG4 – HD/Race Sprung 4 Pad

Descrizione

DN2-HDG4 kit features ACT’s most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT’s 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines. disc_diameter_millimeters 224 flywheel_tooth_count 106 pressure_plate_type 33 sfi spline_count 17 spline_size_inches 15/16 torque_capacity_ft_lbs 395 torque_capacity_nm 535 torque_capacity_over_oe 115%
